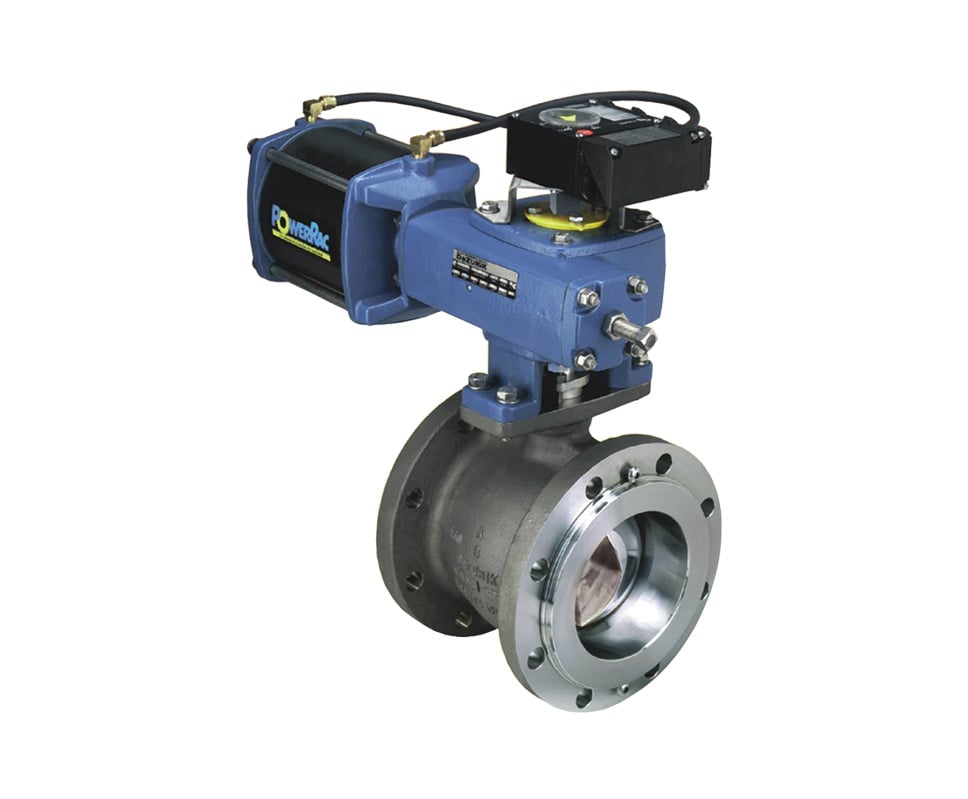

VPB V-PORTED CONTROL VALVES
Control accuracy will increase process plant efficiency, improve overall profitability, and reduce control valve life-cycle costs.
Dezurik - VPB V ported Control Valves | The Valve Company
VPB V-ported SPECIFICATIONS
- Size Range 1-20" (25-500mm) ASME Class 150; 1-12" (25-300mm) ASME Class 300
- Temperature Range to 1000°F (540°C)
- Shell Pressure Rating to 285-740 psi (1960-5100 kPa)
- Shutoff Class Per ANSI/FCI 70-2; Flexible Metal: Class IV; Rigid Metal: Class IV; Reinforced PTFE Seat: Class VI; Clearance Seat: 5% of max flow when closed
- Body Styles Flanged or flangeless
- Body Material Carbon steel, 316 and 317 stainless steel, Hastelloy C
- Actuator type Handwheel, chainwheel, PowerRac® double-acting and spring-return cylinder actuators, spring-return diaphragm actuator
FEATURES & BENEFITS
FEATURES & BENEFITS
DeZURIK V-Port Ball valves deliver superior performance and reliability required to optimize process performance. This versatile valve is designed for control of fibrous suspension applications, plus clean, dirty, viscous and corrosive liquids and gases. When operated by a high-quality DeZURIK actuator and controlled by one of many high performing positioners, the DeZURIK V-Port Ball control valve can deliver control accuracy exceeding 0.5% as measured by the Benchmark Control Valve Diagnostics™ System. Control accuracy will increase process plant efficiency, improve overall profitability and reduce control valve life-cycle costs
