ASD DUAL BODY SEWAGE COMBINATION AIR VALVES
The Custom Combination Sewage Air Valves are dual function venting large volumes of air through the large orifice and small pockets of air through the small orifice before shutting off spurt free.
Dezurik - ASD Dual Body Sewage Combination Air Valves | The Valve Company
ASD SPECIFICATIONS
- Size Range 1.2 (1" valve with a 2" NPT Inlet and 1" NPT Outlet) - 14"
ASD DUAL BODY SEWAGE DOWNLOADS
FEATURES & BENEFITS

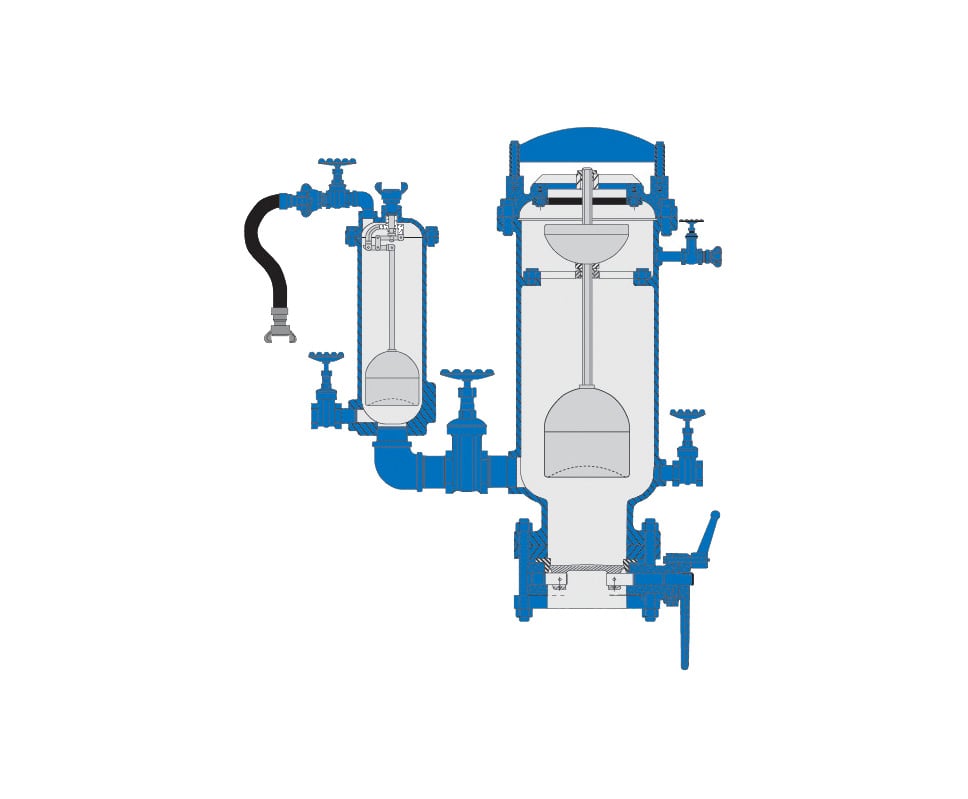

The Custom Combination Sewage Air Valves are dual function venting large volumes of air through the large orifice and small pockets of air through the small orifice before shutting off spurt free. Thereafter, while the air valve is pressurized, pockets of air collecting will be vented through the small orifice automatically. Should vacuum develop in the force main, the upper spherical float will open the large orifice permitting large volumes of air to re-enter the force main to break the vacuum. The upper float is protected against opening vacuum impact with a Buna-N Bumper. When the force main returns to normal pressure, the Combination Sewage Air Valve will close without spillage.
