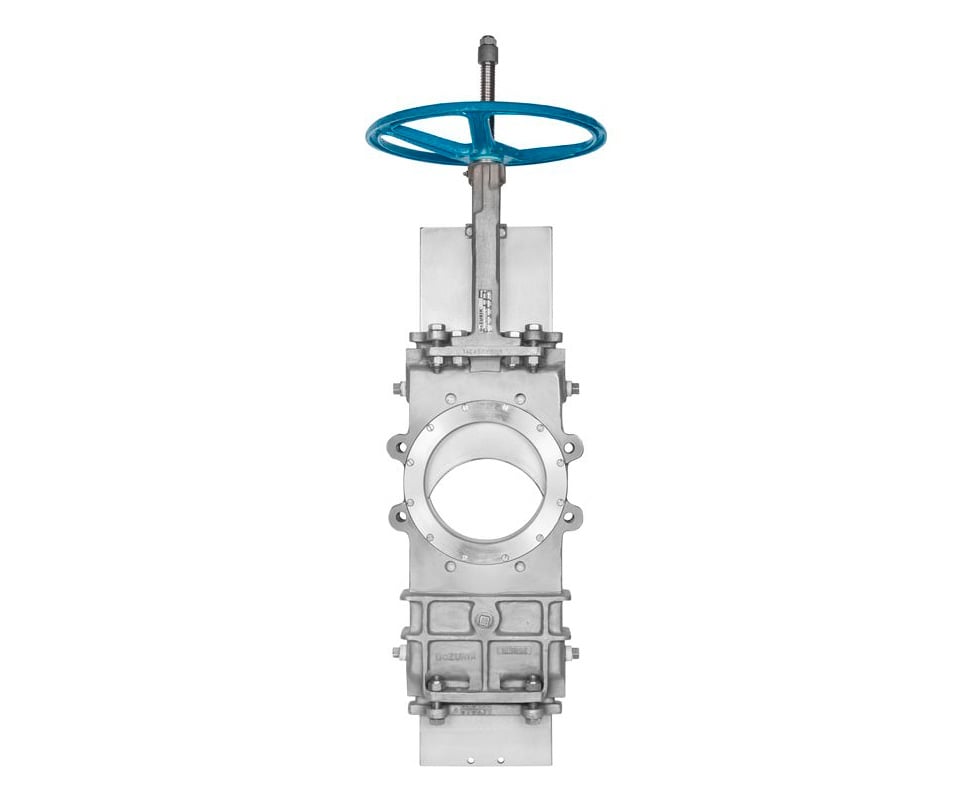

Dezurik – KGO O port Gate Valves
DeZURIK KGO O-Port Gate Valves can be used on virtually all types of liquids, slurries and dry materials.
Dezurik – KGO O port Gate Valves Specifications
- Size Range
- Hilton Fabricated Design (H-1500) through 66" (1700mm)
- Temperature range
- to 500°F (260°C) Higher temperatures available on application or on fabricated design
- Pressure Rating
- 150 psi CWP (1034 kPa)
- Body Material
- 316 stainless steel
Features & Benefits
- DeZURIK KGO O-Port Gate Valves can be used on virtually all types of liquids, slurries and dry materials, but are specially designed to handle high-consistency paper stock, wood chips, fly ash, and slurries with high solids content and highly viscous fluids. KGO O-Port Gate Valves are ideally suited for High Density Cleaners, Cyclones, Trash Dump Valves and Refiner Bypass or Isolation applications in the Pulp & Paper, Mining and Power industries.
- DeZURIK KGO-CST O-Port Gate Valves are available is sizes 2-24" (50-600mm) and feature a cast body rated to 150 psi CWP, and with uni-directional face sealing. Metal or resilient seats are available in 316 Stainless Steel, Terpolymer of Ethylene, Propylene and A Diene (EPDM), PTFE or Reinforced PTFE.
