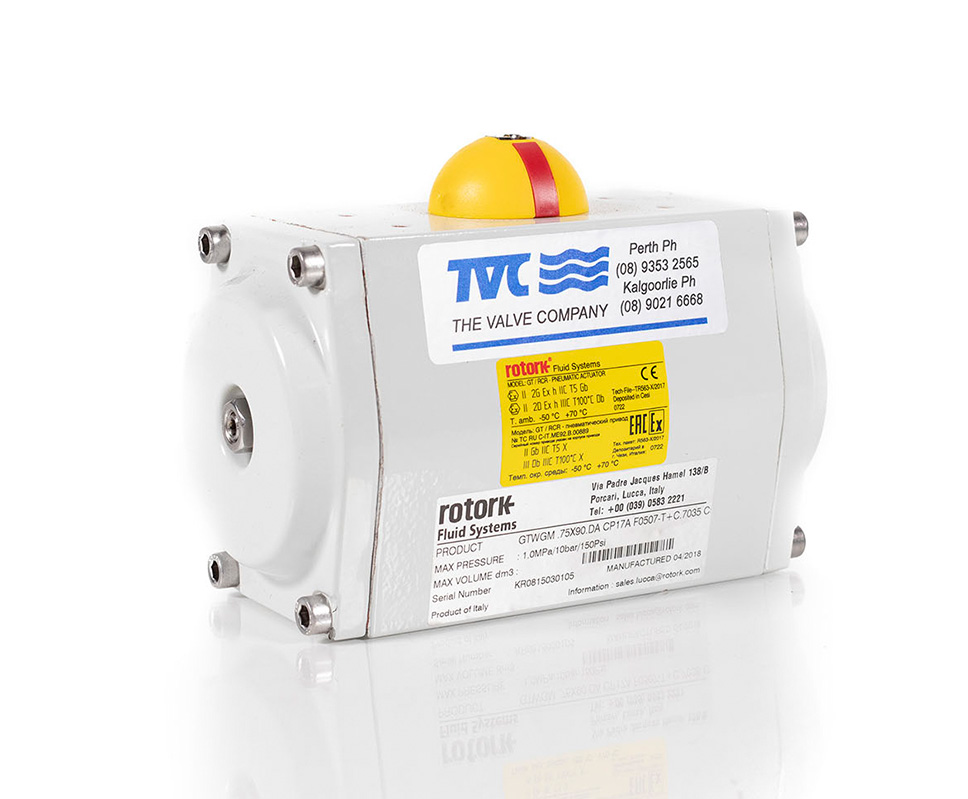

TVC Pneumatic Actuator GT Range
GT Range single- and double-acting pneumatic piston actuators.
TVC Pneumatic Actuator GT Range Specifications
- Design
- Single- and double-acting pneumatic piston actuators (rack and pinion)
- Torque outputs
- 2.4 to 15,300 Nm (135,400 lbf.in)
- Action Standard
- 90°, optional 120°, 180° , 240° or custom angles
- Stroke adjustment
- -5° to +5° from 90° position | Single and double end stop options
- Air pressure
- 2 to 10 bar
Features & Benefits
- With superior design, material specification, manufacturing precision, and an industry-best global sales and services support network, the GT range actuators are the best choice for any rack & pinion valve actuation requirement.
