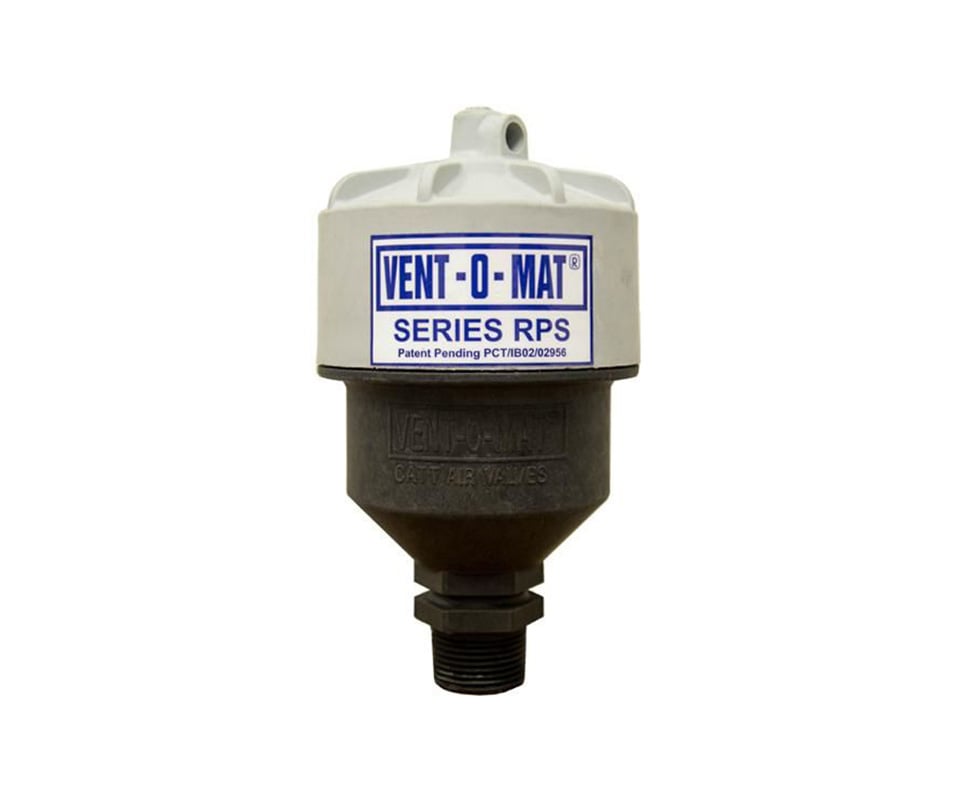

Vent O Mat RPS
The Vent-O-Mat® RPS Series valve is specially developed as a Lightweight Air Release Valve for the irrigation market.
Vent O Mat RPS Specifications
- Size Range
- DN15 to DN50
- Temperature Range
- -40degC to 85degC
- Max. Operating Pressure
- Up to 1600kPa
- Min. Operating Pressure
- 50kPa
- Flange/end Connection
- FNPT, MNPT
- Body Material
- Polypropylene Reinforced (RPS) or Fusion Bonded Epoxy Powder Coated Ductile Iron (RC)
- Float Material
- High Density Polyethylene (solid)
- O-Rings and Nozzle Seat
- EPDM
Features & Benefits
- Simple efficient action
- Reduces water hammer
- Unique self-cleaning operation
- UV stabilised
- Robust lightweight and compact
- Replaces any existing valves
