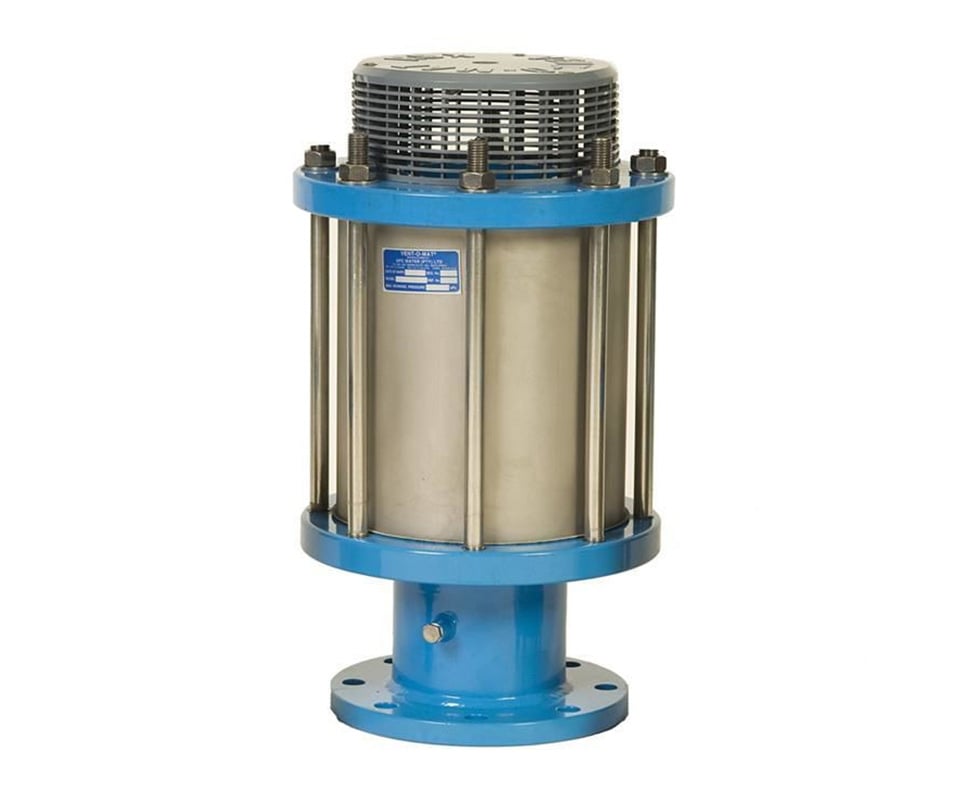

Vent O Mat RBX
The original “Anti-Shock” & “Anti-Surge” air release and vacuum break valves for water, and other liquids with up to 5% solids.
Vent O Mat RBX Specifications
- Size Range
- 25mm to 300mm
- Temperature Range
- 4degC to 80degC
- Max. Operating Pressure
- Up to 100bar depending on size
- Min. Operating Pressure
- 50kPa (low head 10kPa also available)
- End Connection
- BSPT, Flanged, Studded
- Flange Drilling
- AS4087, AS2129, ASME B16.5, EN1092
- Body Material
- Stainless Steel AISI 304L or 316L
- Flange Material
- Fusion Bonded Epoxy Powder Coated
- Top Cover
- ABS Polylac®, Stainless Steel 304L or 316L
- Float Material
- High Density Polyethylene (solid)
- Bleed Port
- Yes
- O-Rings and Nozzle Seat
- EPDM as standard
Features & Benefits
- High capacity air discharge during pipeline filling
- High volume air intake for vacuum break purposes, both during draining of water pipelines and/or column separations
- Independent third-party tested
- Controlled pressurised air discharge releases air when pipelines are fully-charged
- Surge relief prevents pipeline bursts during pump trip & rapid pipeline filling
- NSF61 approved; ARRA, Buy America or PA Steel, American Iron & Steel (AIS), if specified
