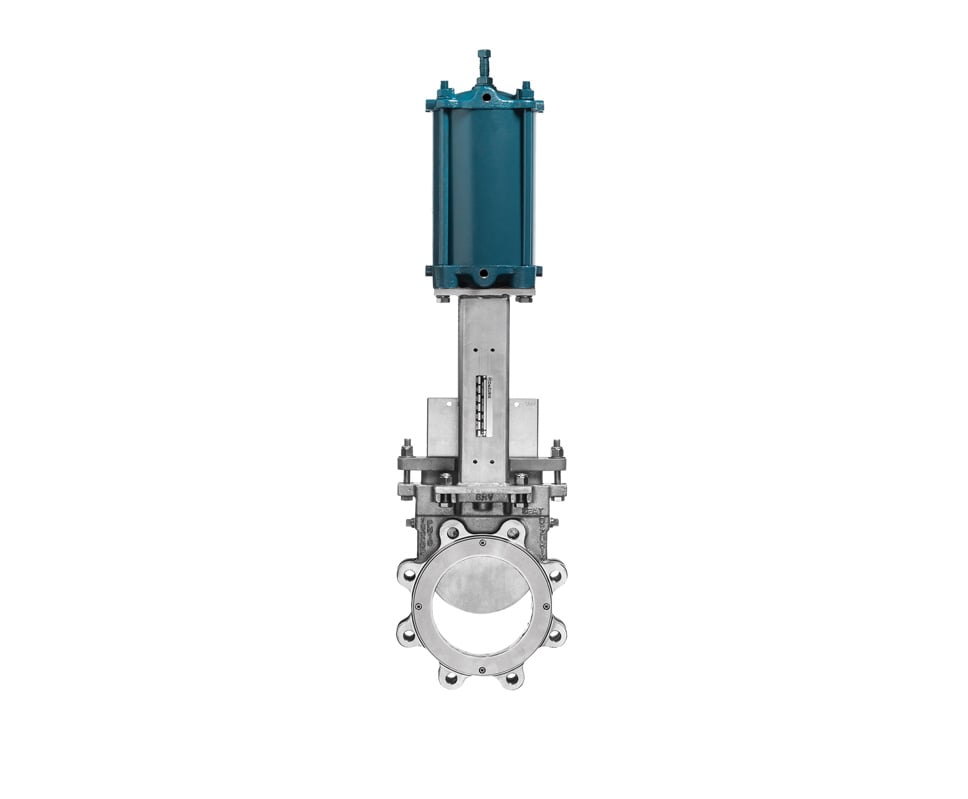

Dezurik – KGC MD Maximum Duty Knife Gate Valve
The KGC-MD Knife Gate Valves are available in 3-24" (80-600mm) sizes with metal or dual metal and resilient seats.
Dezurik – KGC MD Maximum Duty Knife Gate Valve Specifications
- High Flow Capacity
- Valve Seat inside diameter (I.D.) is equal to the I.D. of standard (ASME B36.10) pipe.
- Size Range
- 3-24" (80-600mm)
- Pressure Rating
- 150 psi C.W.P. (1030 kPa)
Features & Benefits
- DeZURIK KGC-MD Maximum Duty Cast Knife Gate Valves are designed to provide a long service life in highly abrasive applications including Pulp and Paper, Mining, Chemical, Petrochemical, Power, Steel, and Food Processing industries.
- These Maximum Duty Knife Gate Valves are specifically designed to provide the shearing and sealing capabilities needed in demanding services such as cyclone separators, recycle high-density cleaners, recycle detrashers, hydropulpers, pulper rejects/knotters, or sand cleaners.
- The KGC-MD Knife Gate Valves are available in 3-24" (80-600mm) sizes with metal or dual metal and resilient seats. To withstand highly abrasive media, the valves are available with a replaceable hardened seat, hardened gate, full 100% port opening, high-performance packing system with wire scraper rings, and heavy-duty superstructure. All these features combine to provide a longer service life, less downtime, and less maintenance than other valves designed for these tough applications.
