TVC Lugged Ductile Iron Butterfly Valves – High Performance

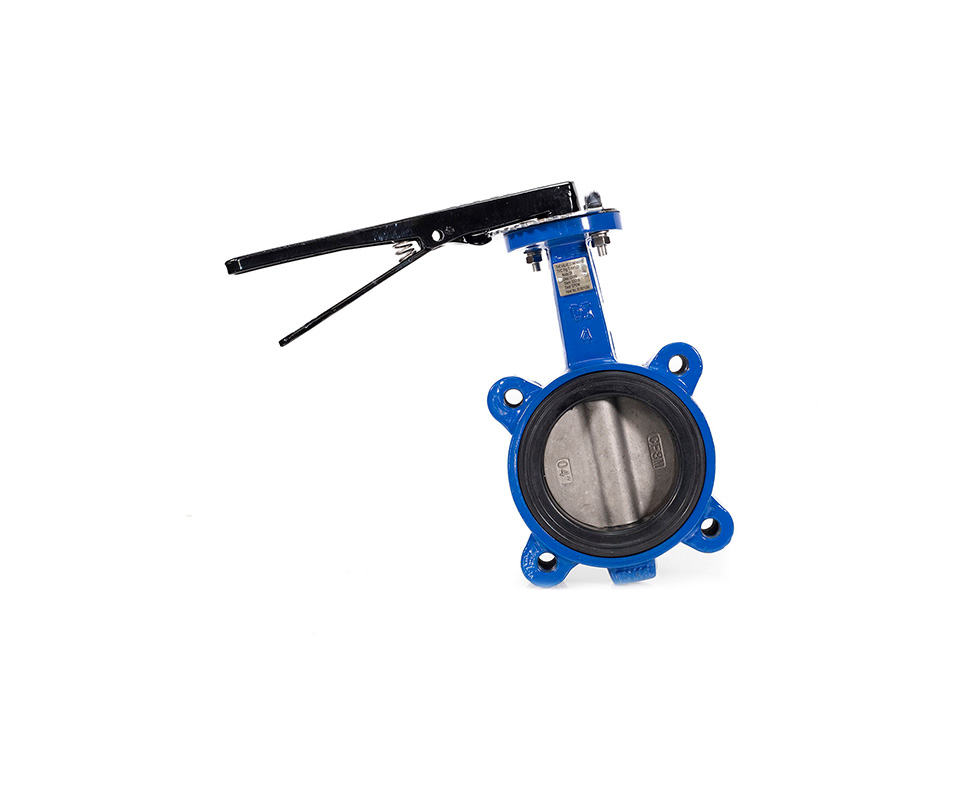

The TVC Fig.IBFLDI is a lugged style resilient seated butterfly valve available with an EPDM or NBR seat.
TVC Lugged Ductile Iron Butterfly Valves – High Performance Specifications
- Size Range
- DN50 - DN600
- Temperature Range
- -10°C to 110°C for EPDM Seat | -10°C to 80°C for NBR Seat
- Pressure Rating
- 1600 kPa
- Drilling
- AS2129 Table D/E | ASME B16.5 Class 150
Features & Benefits
- One-piece body with a through stem design utilising an internal disc to stem connection.
- 360° polished disc to ensure bidirectional bubble-tight shut-off
- PTFE bushings to prevent stem lateral movement
- Unique stem seal arrangement to guarantee media containment.
- Can be easily automated for on-off or modulating service with an ISO 5211 mounting pad.
- Material and test certification are available.
