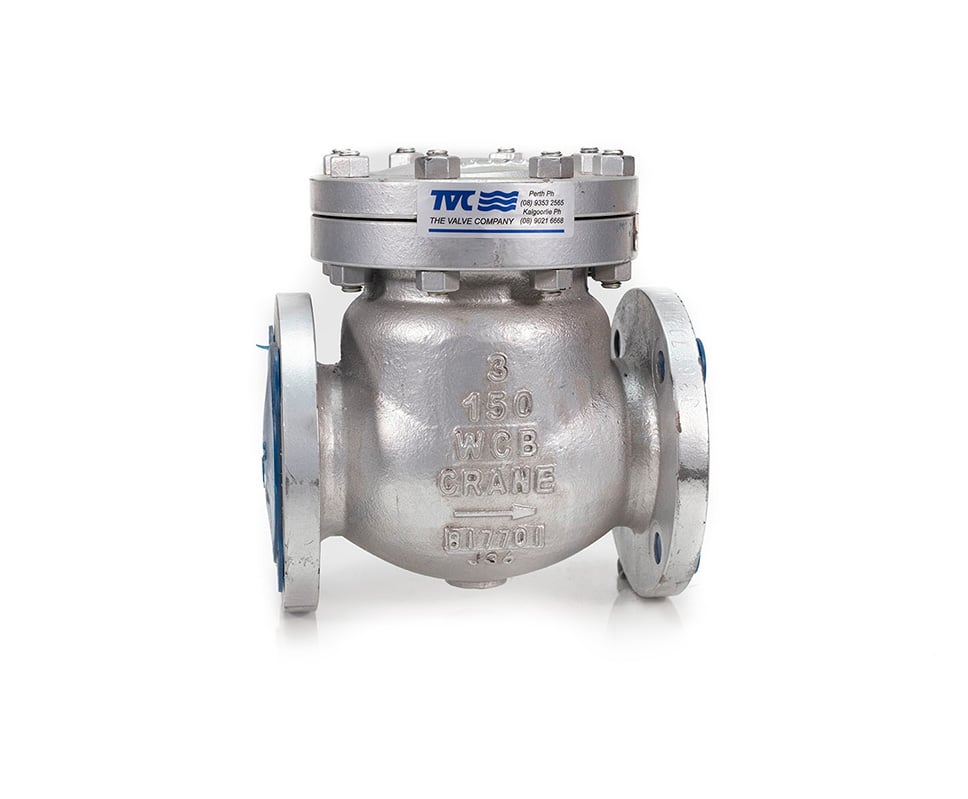

Crane – FIG 147XU Swing Check Valve Flanged ANSI 150RF
Class 150 Steel Swing Check Valve
Crane – FIG 147XU Swing Check Valve Flanged ANSI 150RF Specifications
- Size Range
- DN50 - DN600
- Pressure Rating
- ASME Class 150
- Drilling
- ASME B16.5 Class 150
Features & Benefits
- Manufactured and tested in accordance with API594, ASME B16.34, B16.10, B16.5 and API598.
- Body material ASTM A216 Gr WCB as standard (others on application).
- Trim material API No. 8, Cr13-HFS body seat (others on application.
- Cast Steel, bolted cap and flanged.
- Swing check valves prevent reversal of flow through the pipeline.
- Can be installed in horizontal or vertical, upward flow piping.
- Offer low resistance to flow and are particularly suited to low velocity service.
- Seat ring is seal welded to eliminate leak path.
