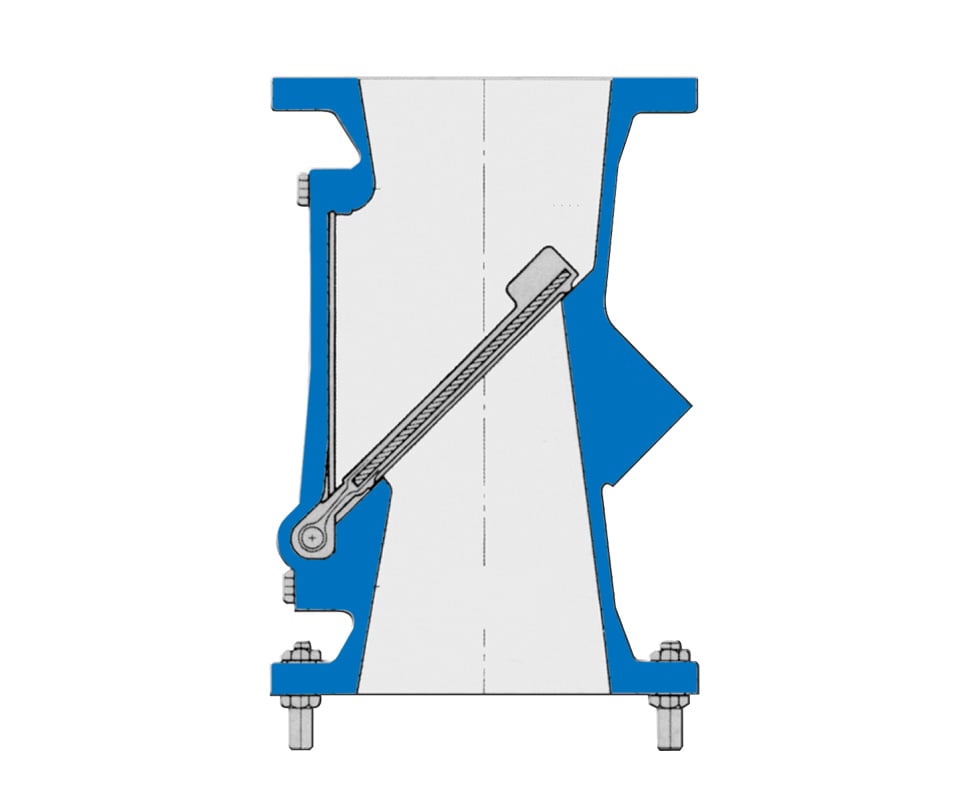

Dezurik – FRF APCO Full Flow Rubber Flapper Check Valve
Full Flow Rubber Flapper Foot Valves are designed for water or sewage, and are suitable for submerged service.
Dezurik – FRF APCO Full Flow Rubber Flapper Check Valve Specifications
- Body Material
- Cast iron, ductile iron, bronze
- Body Styles
- Series 100F
- Pressure Rating
- 150, 175 and 250 psi CWP (1030, 1210 and 1720 kPa)
- Size Range
- 2-36” (50-900mm)
Features & Benefits
- Full Flow Rubber Flapper Foot Valves are designed for water or sewage, and are suitable for submerged service. The Rubber Flapper Foot Valve is installed in the vertical position with the direction of flow in upwards. In this position the Foot Valve is normally closed. The Foot Valve opens while the centrifugal pump is running and closes when the pump stops running to maintain a flooded suction and primed pump.
