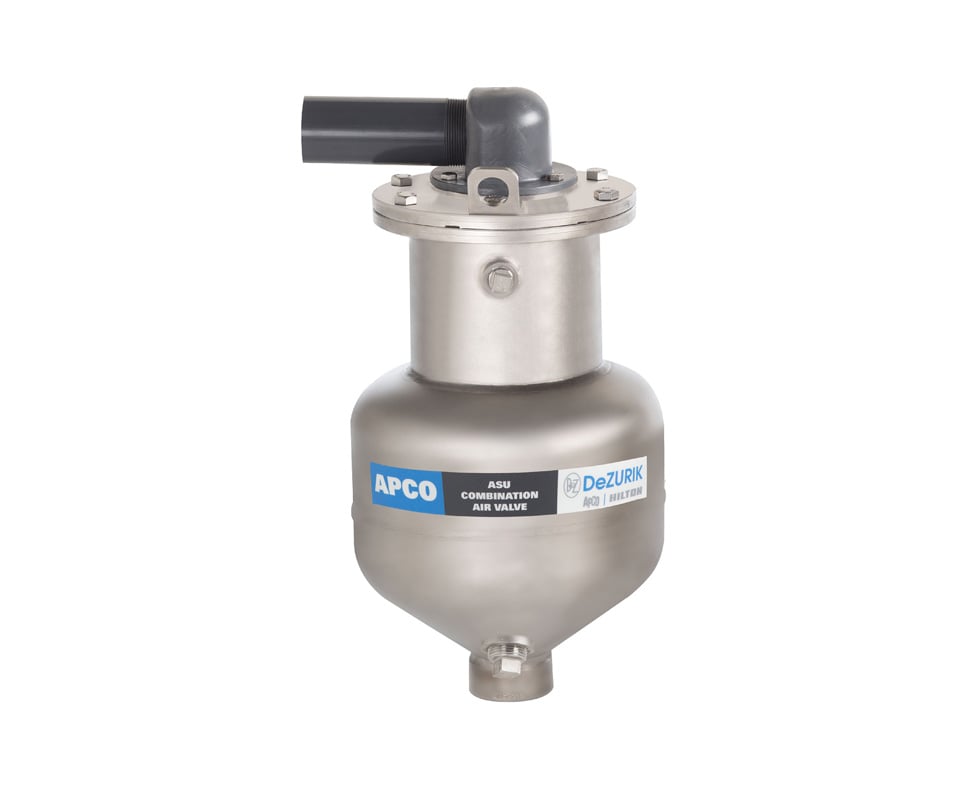

ASU SINGLE BODY COMBINATION AIR VALVES
APCO Single Body Combination Air Valves (ASU) can be used for clean or dirty services. The unique and patented venting design provides varied and predictable air flow over a wide range of air release and air/vacuum conditions.
Dezurik - ASU Single Body Combination Air Valves | The Valve Company
ASU SPECIFICATIONS
- Size Range 1-6” (25-150mm)
- Operating Range 2 to 150 psi (14 to 1035 kPa) and 2 to 300 psi (14 to 2070 kPa)
- Body Material 316 Stainless Steel
Make an Enquiry
ASU SINGLE BODY DOWNLOADS
PDF - ASU Combination Air Valve Sales 300.00-1
FEATURES & BENEFITS
APCO Single Body Combination Air Valves (ASU) can be used for clean or dirty services. The unique and patented venting design provides varied and predictable air flow over a wide range of air release and air/vacuum conditions. A large diameter Air/Vacuum Disc provides high volume air flow for rapid venting during pipeline filling and allows high volumes of air to enter the pipeline during draining. During normal pipeline flow conditions, the dual-range air release design prevents air build up and resultant flow restrictions under changing conditions and through the full flow range.
